Hi..new to this forum. I have always wanted to take on an ROV build but most were complicated due to not being familiar with the Raspberry Pi or Python. This project made it extremely easy. Costas has done all the hard work and made it easy for a novice like myself. Most of my project was DIY but I did buy the hacked dome, the ROV STL files and the SD card from the products Blue Dot ROV provides.
My build:
Printing - Artillery Sidewinder X1 - This ROV was the first thing I ever printed on this printer. Downloaded the STL files after my purchase, leveled the bed and hit print! Some of the STL objects will seem very large or very small in your slicer but are easily fixed by scaling up x10 or down by x10. Thanks Costas for helping me with this. I did have fitment issues with the cradle when trying to install the battery. I did not calibrate my printer and believe it was due to this and not the STL files. Also I did rotate some of the STL files in my slicer to optimize them for my printer and the support needed to print them properly.
Software - I downloaded the Raspberry Pi Imager from the link provided, then the ROV software from the link provided. During the ROV imaging processes the progress bar went past %100 and eventually completed the imaging process around %400. Then completed the verification process with no issues.
Hardware - I used the off-the-shelf list Costas provides with no issues. Some of the links might be broken due to supply chain limitations but was able to find them elsewhere on Amazon/Ebay. I did bench test all the hardware and software minus the motors before installing in the printed cradle. I could tell everything was working due to the video from the camera and the LEDs blinking on the motor control boards when using the app buttons.
The BlueDotROV App - The app is user friendly and worked well with my Galaxy S9 and Galaxy Tablet. I was not able to make the compass visible on the screen but it does flash up on screen for a second when I first turn on the app but disappears for some reason. If anyone knows why please let me know. I also need to complete the battery sensor install and do not have a voltage readout at this time.
Summary:
I highly recommend this project to the novice with a 3D printer or someone that wants to buy the kit from Blue Dot ROV. Costas does a great job walking you through the build with his YouTube videos and I was able to complete this project in a week. The cable management portion was the trickiest part when installing the electronics in the cradle but I make some mods to make it fit for me.
ncert exemplar is a great resource for students who want to get a better understanding of the concepts covered in their classes. The exemplar provides ncert exemplar class 10 maths , ncert exemplar class 10 science , ncert exemplar class 9 maths , ncert exemplar class 9 science clear explanations and examples that can help students apply the concepts they learn in class to real-world situations. Additionally, the exemplar is a great tool for preparing for exams.
Hey, nice builds both of you! I love the cool colors and the way @ajj99 's glows in blacklight! And I love the little rings that @encarl added to the propellers, can you tell us more about how you made those?
Caution When if you are connecting GROUND terminalPIN on Motor-Driver- the BATTERY SENSOR will not work.
Success! My GROUND pins on both Motor Controllers were not connected. Everything works. i used both Pi3 and Pi4 and it operated good. Thanks for your help.
I connected the pins Using V0.1.1.2. Camero Servo tilts but no Motor response.
My pin chart
That would be very helpful And take pictures of the pin connections plz
Sounds like a similar issue other people were having. Make sure you are using the correct build instructions for your bluedot software version. I labeled all my wires to ensure it was wired for the correct version..it gets confusing. I will try and list my gpio pin layout for you to see if they match.
Finally received a Pi3 model B v1.2. Able to view in App but only camera view, motor percentages , armed and camera tilt okay. Rechecked all connections but still no motor response and no cam tilt movement. images https://www.dropbox.com/sh/qbx95c95dzivgew/AABGuB9bxJfUbjNDedtDtSGca?dl=0 Tried with Blue Dot SD Card, ModelC_011 imager and YouTube. No help. need help pleasethanks your a great help ill
update
i have tried two P i4 , so i better get a Pi 3b
No Help. Ran Pi Imager v1.7.1 and chose CUSTOM-Modelc_011 - to Destination microSD Card. Got BOOT error to Update software.
tried it again with another card- no help
Same error as BlueDot SD card. did I miss something.?
l would like to get my sub running.
Good job for your first time. I don’t have such luck and confused
you write that you downloaded the Raspberry Pi Imager from the link provided, then the ROV software from the link provided. And the BlueDot SD card. Did you use all three and what sequence?

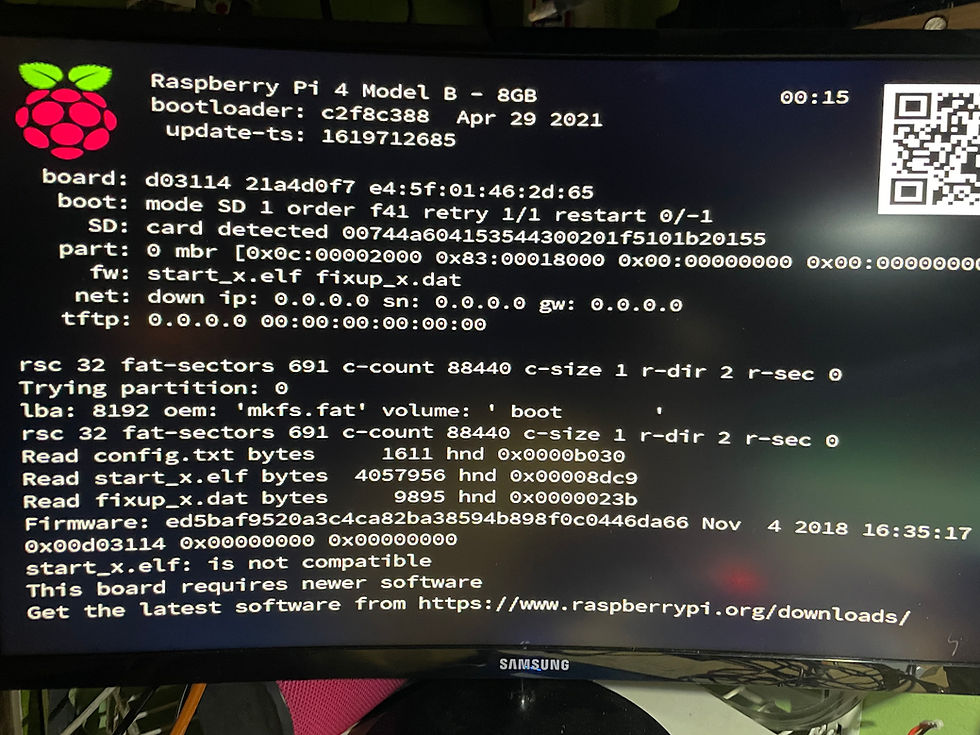

this is what I get when I boot up with the Blue Dot SD card only.
I need help.
Bonjour, je souhaiterai rajouter un bars, penses-tu que cela soit possible?
